purpose

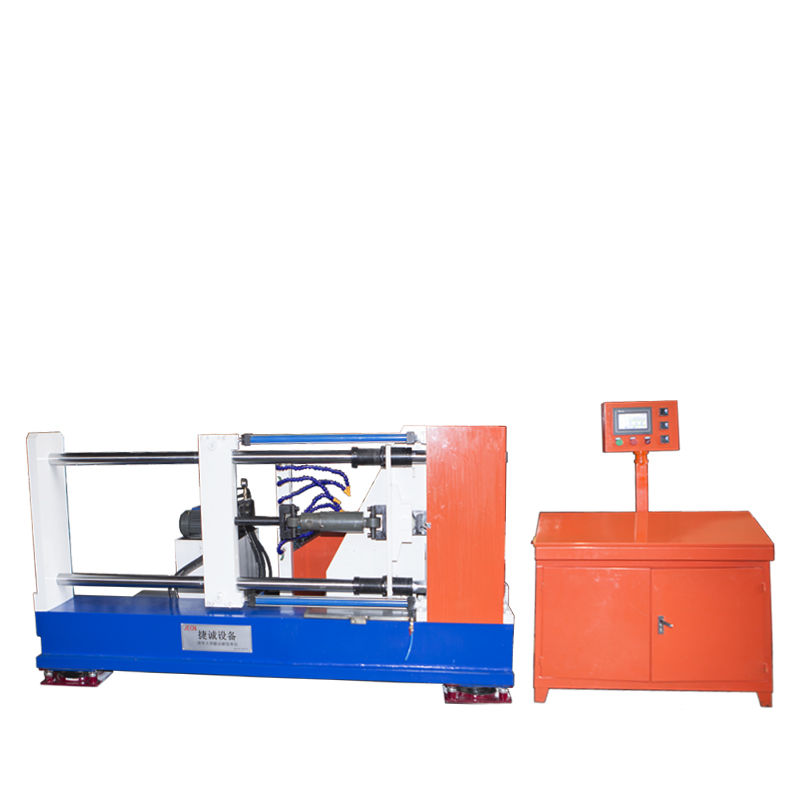

The equipment base is integrally welded with steel plates, and the driving part is installed on an integral base to ensure the rigidity and stability of the equipment.
The equipment simulates the vibration of the shock absorber when it is installed on the road, uses mechanical excitation, and the crank link slider mechanism drives the shock absorber to move back and forth. At the same time, the shock absorber is cooled by strong wind, and the fatigue test is carried out on the shock absorber. After a certain number of operations, the change rate of the shock absorber relative to the process state before the test is verified. It can effectively detect the service performance and fatigue life of the components used in the shock absorber in the real environment. The equipment is easy to operate and highly automated. The equipment adopts touch screen PLC system, which can realize the input, modification and real-time display of parameters such as speed, temperature, etc. During the test process, multiple indicators of the test products are monitored to basically achieve unattended testing.
Main technical parameters
1) Excitation amplitude: ± 1~35mm (adjustable)
2) Excitation frequency range: 0-25HZ (adjustable)
3) Quantity of tested products: 3
4) Maximum bearing load 60000 N
5) Motor power: 22KW
6) Product length: 200-1200MM
7) Product adjustment mode: hydraulic lifting, hydraulic locking
8) The product is 700MM~900MM~1100MM above the ground
9) Thickness of equipment base plate: 40MM
