purpose

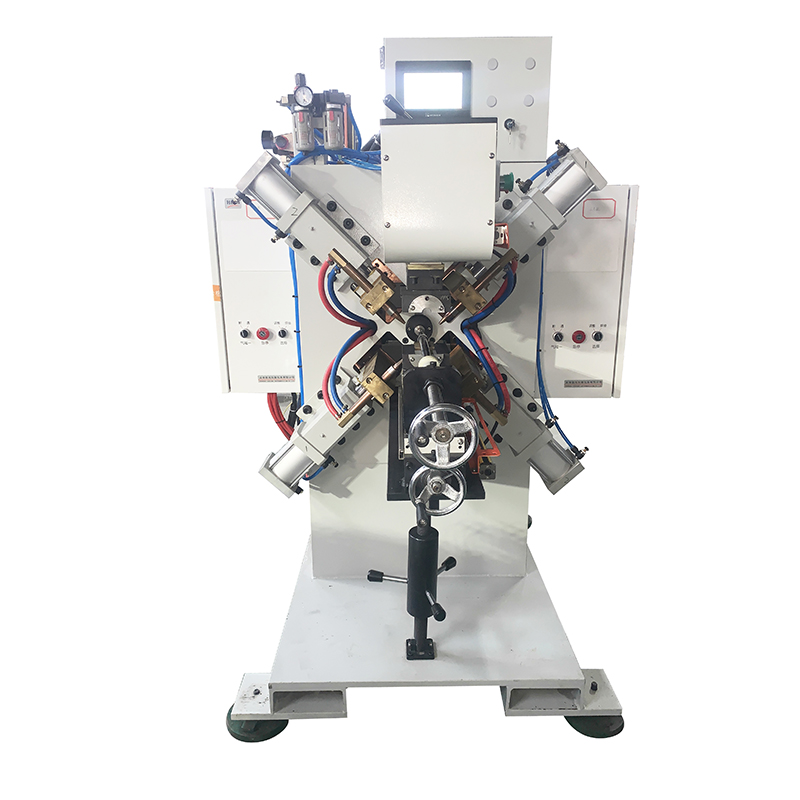

The accessories such as (cover) and (pipe) in the workpiece buffer actuated by (air compression) are welded to each other. First, the workpieces (tubes) with different lengths and sizes are fixed on the special lower electrode clamping die. After the workpieces are held and fixed, they discharge with the workpieces (covers) through the current controller for welding. This machine is a universal machine, and its cost will be reduced.
technical parameter
Power supply voltage: two-phase AC 380V/50Hz (NFB 400A)
Control power supply: single-phase AC 220V/50Hz
Air pressure: 5~6 Kg/cm2 with a set of 10Kg pressure storage cylinders
Inlet diameter: 1/2 "
Air consumption: 12L/circuit
Cooling water volume: 20 L/MIN
Inlet and outlet diameter: 1 1/4 "
Cooling water pressure: 3~4 Kg/cm2j)
Overall dimension: 600mm × 1350mm × 1900mm
Weight: 1.2t
